The Crossley Delta commercial vehicles
The
Delta
range
of commercials was introduced in November 1933. Smaller than the Beta,
which was launched at the same time, the two axle chassis was rated at
three to four tons capacity. Both lorry and bus chassis were
offered in normal and, from mid 1934, forward control types and a
single example of a coach was also made. A tractor version for
articulated vehicles was exhibited at the 1935 Commercial Motor Show
but seems to have not gone into production.
The 20/60 3705cc 4 cylinder petrol engine was used with the VS4 diesel as an alternative from late 1935.
Chassis numbers were in the 963xx range for the petrol engine and 965xx for the diesel chassis.
The number made is not known and there are no known
survivors.
BODY STYLES
|

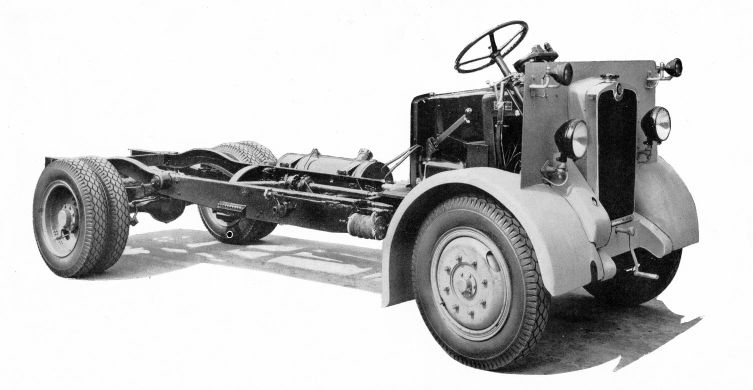

Delta chassis. The chassis cost £425.
|
|
A Delta truck that was exported to Mauritius
|
|
The only coach built on the Delta
chassis was this petrol engined, streamlined example that was supplied
to Manchester City Transport in 1935 for their airport service.
|
SPECIFICATION
|
Engine/gearbox/transmission
|
Body/chassis
|
|
capacity
|
3705 cc (20/60)
3620 cc (VS4) |
|
cylinders
|
4
|
|
bore
|
3.5 inches (88.9 mm) (20/60)
3.75 inches (95.2 mm) (VS4)
|
|
stroke
|
5 7/8 inches (150mm) (20/60)
5 inches (127 mm) (VS4)
|
|
compression ratio
|
20:1 (VS4) |
|
RAC Horse Power
|
19.6 (20/60)
22.5 (VS4)
|
|
valves
|
side (20/60)
overhead (VS4)
|
| ignition | coil (magneto optional) |
|
injection
|
CAV Bosch (VS4)
|
| carburettor | Solex (20/60) |
|
max power
|
60 bhp at 2500 rpm (20/60)
50 bhp at 2150 rpm (VS4)
|
|
fuel consumption (typical)
|
18 gallon tank
|
|
lubrication
|
Dry sump (20/60)
|
|
max speed (approx)
|
not known |
|
Gears
|
Gearbox in-unit with engine.
Ratios - 4.52:1, 2.7:1, 1.67:1, 1:1. Reverse 5.2:1
|
|
Clutch
|
Ferodo single dry plate
|
|
Drive Shaft
|
Open shaft with centre joint.
|
|
Rear axle
|
Overhead worm.
Fully floating half shafts
6.5:1 ratio
|
|
|
wheelbase
|
11 feet 6 inches (3353 mm) normal control
12 feet 6 inches (3810 mm) forward control and diesel
14 feet (4267 mm) Long wheelbase petrol or diesel
15 feet 6 inches (4724 mm) Bus version.
|
|
length
|
18 feet 1 inches (5512 mm)
|
|
width overall
|
6 feet 8 inches (2032 mm)
|
|
track
|
Front - 5 feet 6 inches (1676 mm)
Rear - 5 feet 4.75 inches (1645 mm)
|
|
weight
|
cwt (chassis)
|
|
steering
|
Bishop cam and lever.
|
|
suspension - front
|
half elliptic springs, 2 inches (50 mm) wide
|
|
suspension -rear
|
half elliptic springs outside the frame, 2 inches (50 mm) wide
|
|
brakes
|
Marelli vacuum servo.
16 inch (406 mm) x 4.5 inch (115 mm) drums
Handbrake operates on rear wheels.
|
|
wheels/tyres
|
Tyres 32 x 6.
Twin wheels at rear.
|
|
©
Malcolm Asquith 2010
