The Crossley "Eagle"
and "Hawk" buses
The "Eagle" range of single and double deck buses was
introduced in mid 1928. The last were built in 1930 but still
appeared in catalogues until 1934. The "Hawk" was a shortened version
designed for the coach market.
82 forward control "Eagle" chassis were produced with numbers
90000 to 90080 and one normal control numbered 90101. Two were
built as double deckers and one was bodied as a van. Twelve "Hawks"
were produced numbered 90301 to 90312.
The remains of one Hawk survives.
BODY STYLES
|

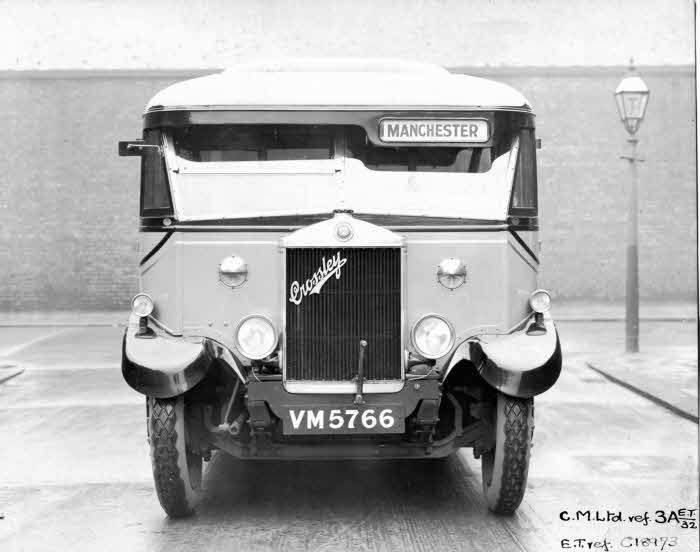

A 1928 Eagle built for the coach market and bodied by
Spicer of Southport for Majestic Coach Lines Manchester -London service.
|
|
A 1929 Eagle with Hickman body for H G Orr of Little Lever, Bolton
|
|
The 30/70 engine used in the Eagle.
|
The Crossley 30/70 four cylinder petrol engine with aluminium cylinder head was used in these chassis.
The Eagle chassis was priced at £970 in 1930 and the Hawk £850.
SPECIFICATION
|
Engine/gearbox/transmission
|
Body/chassis
|
|
capacity
|
5266 cc (petrol)
|
|
cylinders
|
4 cylinder pair cast
|
|
bore
|
4 5/16 inches (109.5 mm)
|
|
stroke
|
5 1/2 inches (139.7 mm)
|
|
compression ratio
|
n/a
|
|
RAC Horse Power
|
38.429.7
|
|
valves
|
side
|
|
lubrication
|
dry sump
|
|
max power
|
71 bhp at 2250 rpm
|
|
fuel consumption (typical)
|
10 mpg
|
|
max speed (approx)
|
50 mph
|
|
Gearbox
|
4 speed sliding mesh.
ratios: 5.884:1, 3.29:1, 1.88:1, 1:1.
Reverse 5.18:1
|
|
Clutch
|
single dry plate
|
|
Rear axle
|
Worm drive. Differential offset to near side (left)
|
|
|
wheelbase
|
16 feet 7 1/2 inches (Eagle)
15 feet 6 inches (Hawk)
|
|
length
|
n/a (Eagle)
23 feet 10 inches (Hawk)
|
|
track
|
5 feet 10 1/2 inches
|
|
width overall
|
n/a
|
|
weight
|
n/a
|
|
steering
|
cam and lever
|
|
suspension - front
|
semi elliptic springs
|
|
suspension -rear
|
semi elliptic springs
|
|
brakes
|
Dewandre vacuum servo
Four wheel internal expanding.
Hand brake operates on rear wheels only.
|
|
wheels/tyres
|
36 x 6 inches
twin rear wheels
|
|
