The Crossley "REGIS"

The Crossley Regis was manufactured between 1935 and 1937. Approximately 1050 were made. Chassis numbers range from 100101 to 100599 for the 10/4 and 100001 to 100100 and 100600 onwards for the Regis 12 and 6. The engines were made by Coventry Climax but carried Crossley badging.

BODY STYLES

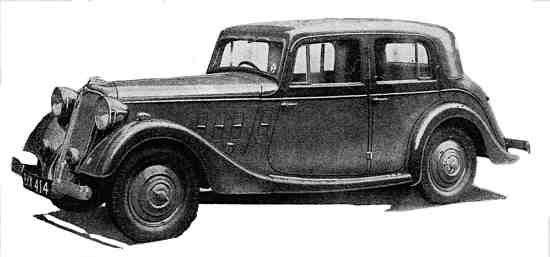

Crossley Regis Sports Saloon

sports saloon
£335 (10hp) (1935-7)
£365 (12hp) (1935-7)

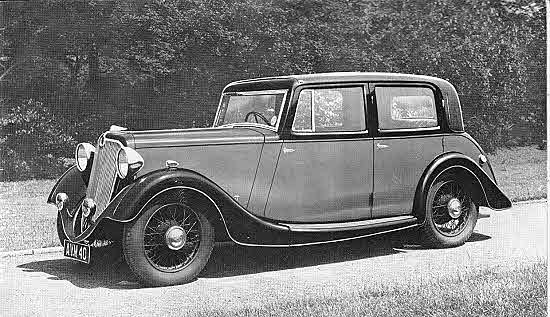

Crossley regis Standard Saloon

standard saloon
£325 (10hp) (1935)
Compared with the Sports Saloon note the higher waist line, the different lower forward edge to the front wings and the taller, squarer windscreen. None of this model are known to survive.

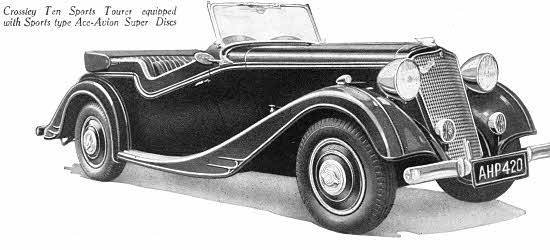

Crossley Regis Tourer

Photo - Brian Surcouf

Crossley bodied tourer
£310 (1935)
£340 (12hp) (1935)

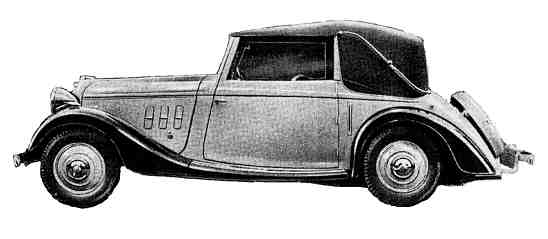

Crossley Regis Tickford Tourer

convertible coupe (Tickford)
£365 (10hp) (1936)
£410 (12hp) (1935)

The Regis originated when the Scottish dealer Gordon C McAndrew wanted an updated "Ten" for his use and commisioned C F Beauvais to design the body at Avon Bodies. This was fitted to a modified 10hp chassis. This design was adapted by Crossley to produce the Regis Saloon with the original Beauvais design offered as the Sports Saloon. Both were shown at the 1934 London Motor Show. The lower built Sports Saloon was the popular choice with very few, possibly only 6, of the standard saloon made. External differences between the 4 and 6 cylinder models were very minor.

Further details of the Regis can be found on the site developed by long term Regis owner Peter Caunt at www.geocities.com/registen/regis.html

Other body styles existed, especially on exported cars which were often supplied in chassis only form.

The prices quoted are from contemporary advertisements.

SPECIFICATION

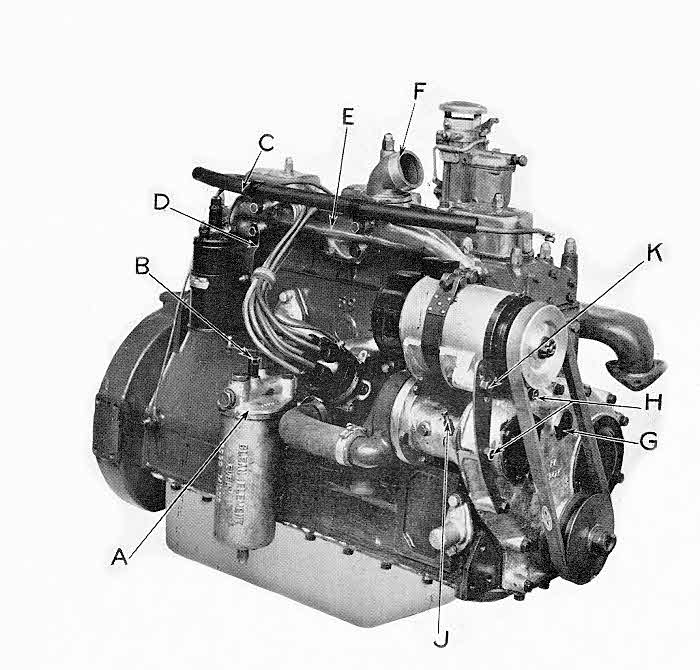

Engine/gearbox/transmission

Body/chassis

capacity

4 cylinder 1122cc (MC Type engine)
6 cylinder (12hp) 1476cc (JM type engine) or 1640cc (JMC type engine)

cylinders

4 or 6 monobloc

bore

4 cylinder 63 mm
6 cylinder (12hp) 59 mm (JM) 63 mm (JMC)

stroke

4 cylinder 90 mm
6 cylinder 90 mm

compression ratio

4 cylinder 6:1
6 cylinder 6.2:1

RAC Horse Power

9.8 (MC), 12.95 (JM), 14.76(JMC)

carburettor

Solex

valves

overhead inlet side exhaust operated by single camshaft

lubrication

pressure to main and big end bearings and camshaft

ignition

coil

max power

4 cylinder 34bhp at 4500rpm
6 cylinder 42bhp at 4500rpm (JM) or 48 bhp at 4500rpm (JMC)

fuel consumption (typical)

6 cylinder 21-25 mpg

max speed (approx)

4 cylinder 65 mph
6 cylinder (12hp) 75 mph

acceleration

4 cylinder 0-50mph in 30.9 sec
6 cylinder 0-50mph in 25 sec

Gears

ENV type 75 4 speed preselector
ratios 1:1; 1.34:1; 2:1; 3.4:1

Clutch

Newton centrifugal

Drive shaft

open shaft with metal Hardy Spicer type joints

Rear axle

spiral bevel
ratio 5.33:1



wheelbase

9 feet 1/2 inch

length

14 feet 11inches

track

4 feet 0 inches

width overall

5 feet 3 inches

weight

saloon - 25 cwt (22cwt unladen)

steering

Burman-Douglas worm and nut

suspension - front

Offset semi elliptic springs.

suspension -rear

Offset semi elliptic springs.

brakes



Bendix cable. Foot and hand brake operating on all wheels.

wheels/tyres

Tyre size - 5.50 x 16
